ValveAudio – Stereo Amplifier Model  SA-35PP

The SA-35PP is a medium powered integrated amplifier offering warmth and colour in an ultra-smooth way to delight almost anyone who is sensitive to the many harsh and clinical presentations offered around. The SA-35PP offers absolute listening quality through simplicity of design and pure “Class A” operation. This is achieved by using a simple design, high quality construction and our unique transformers designed and manufactured “IN-HOUSE”.

Being a true ultralinear connected Class A amplifier, the sound from this amplifier is very musical, and very accurate especially through the critical vocal ranges.

The all-important high definition drive circuit for the SA-35PP output valve is achieved by using the superb 6N1P valves in “Cascode” mode to get the best qualities of push-pull without the drawbacks of flabby bass, hum and low power that many designs suffer.

The SA-35PP is optimized for UL operation.

Almost all amplifiers are made to order. The lead time will be discussed with your order.

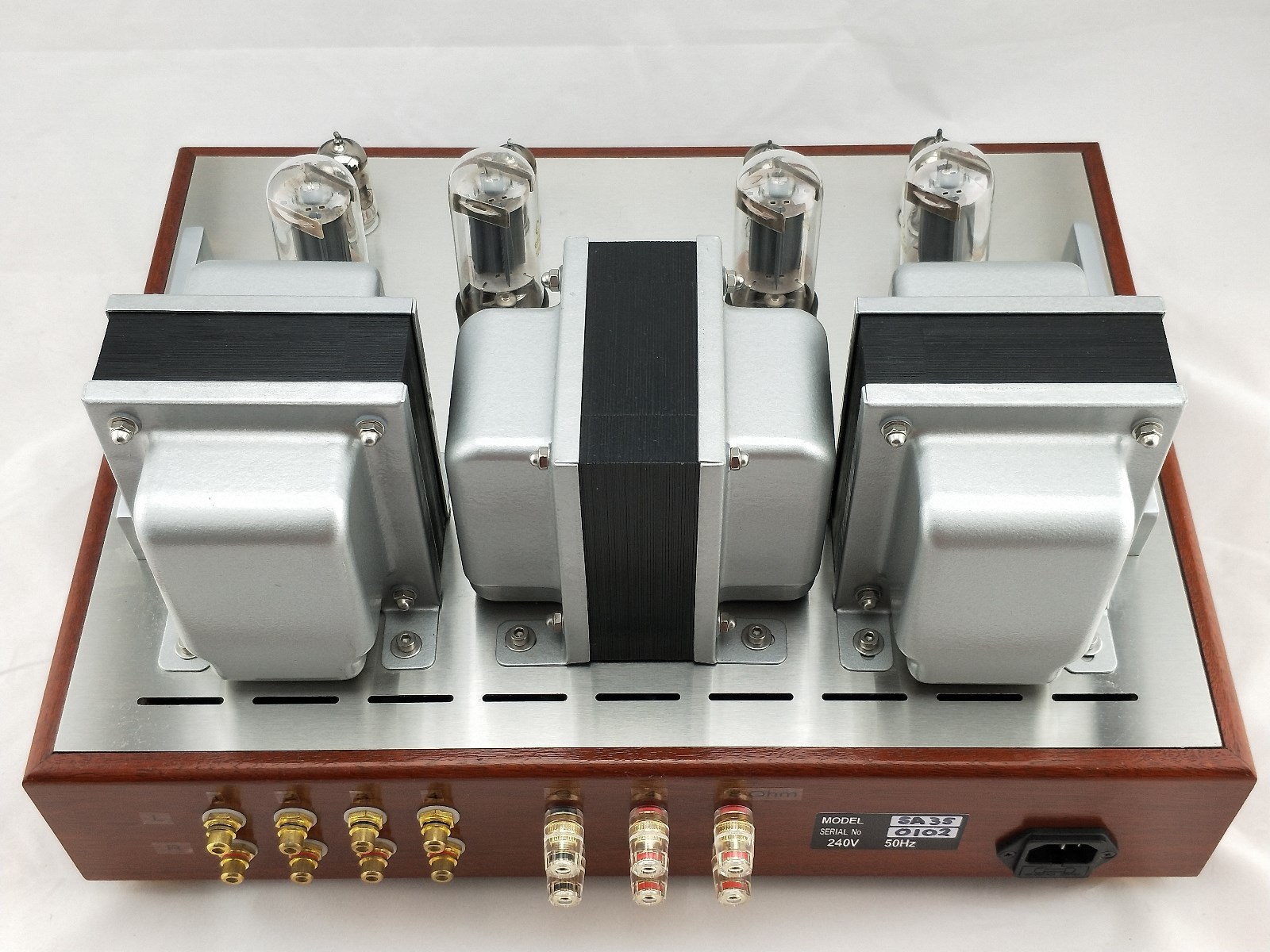

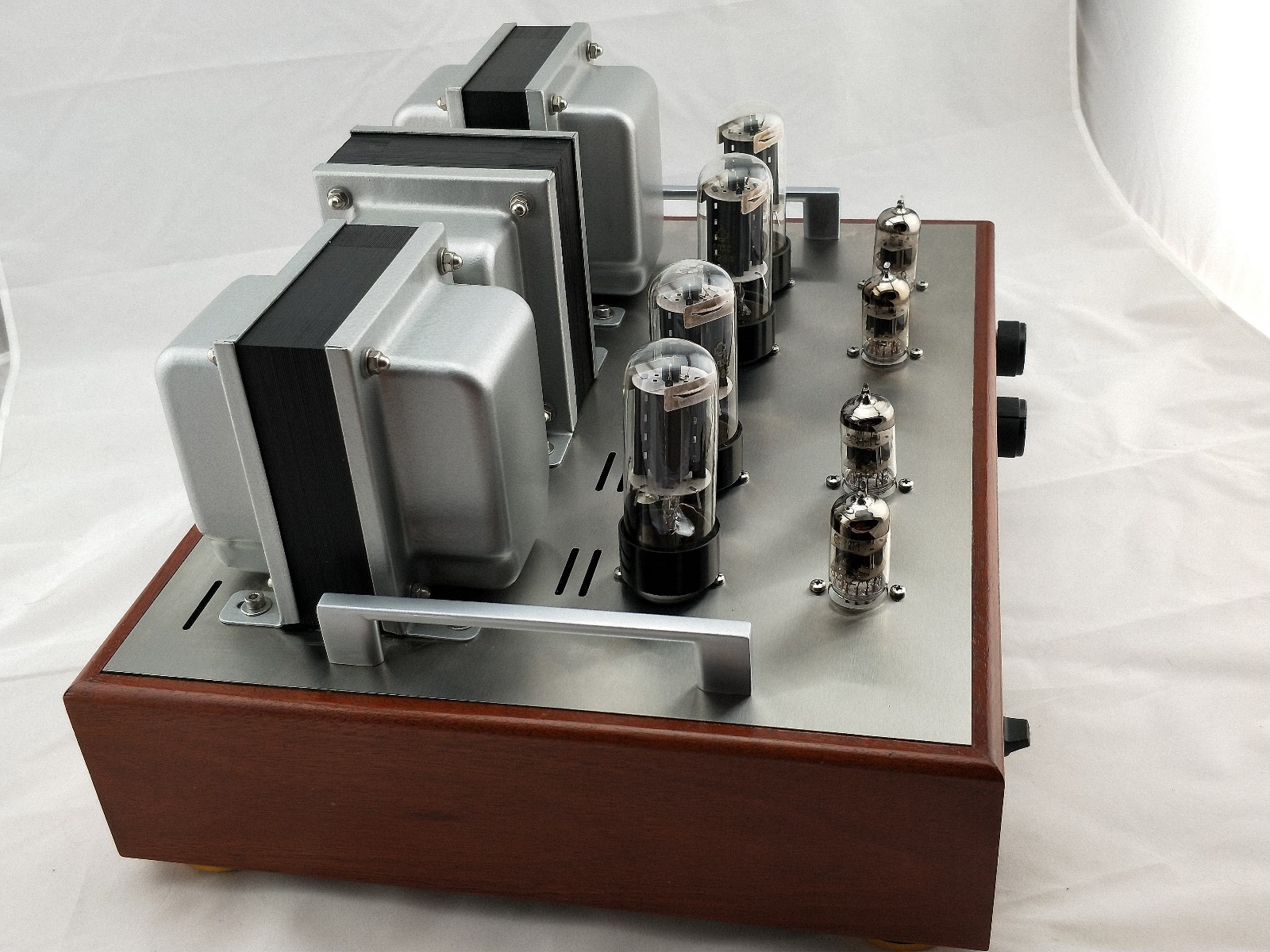

SHOWN WITH JARRAH TIMBER





SPECIFICATIONS

Power Output:  35 watt per channel pure class A

Frequency response:  (-3db) 10hz to >55Khz Signal to Noise:  >90db A Weighted

Signal to Noise:  >92db

Signal to Hum: >82db

Distortion:  <0.05% at 1 watt rms (typically 0.03%)

Hum Level:  <2.0 millivolt

Sensitivity:  450mV Input impedance:  100K

Inputs:  4

Speaker output taps:  4 ohm, 8 ohm

Damping Factor:  >8 (20hz to 20khz 8 ohm)

Weight:  ~22kg (~49lb) Dimensions 420mm x 320mm x 220mm  (width x depth x height)

Price $2,200.00
